what comes next?

[Eric]

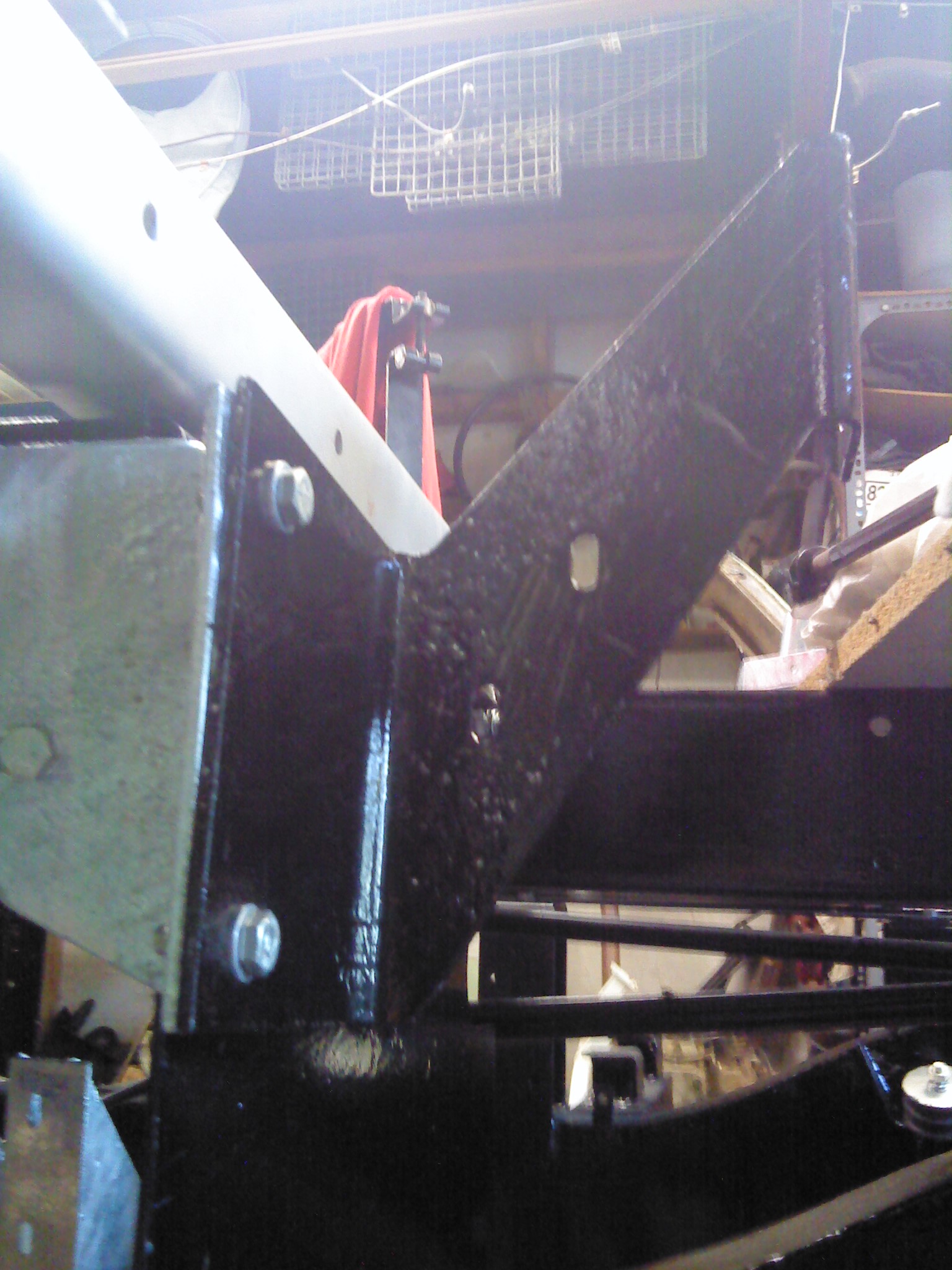

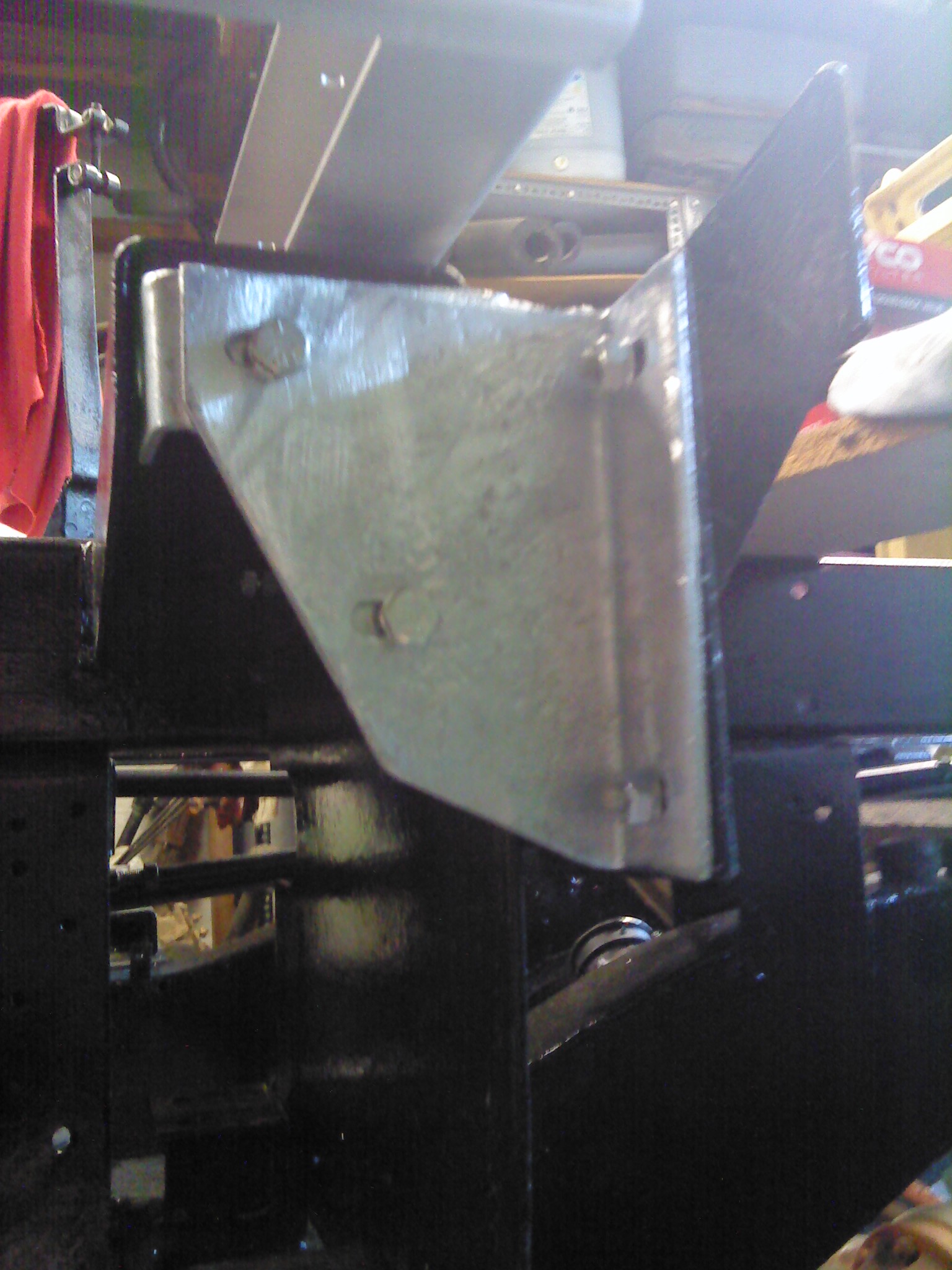

Finally got around to photos of the bit where I can't remember what comes next.


So I think the cab support bracket is in the right place, so can anyone show me where/how the missing plate fits. Thanks.

[DasLandRoverMan]

I'll get some pictures when I'm in the workshop next.

[NZ2AFC]

Hello Eric,
I have added some photos that may help.

[DasLandRoverMan]

Interesting. I've never seen part number 10 on a vehicle.

[NZ2AFC]

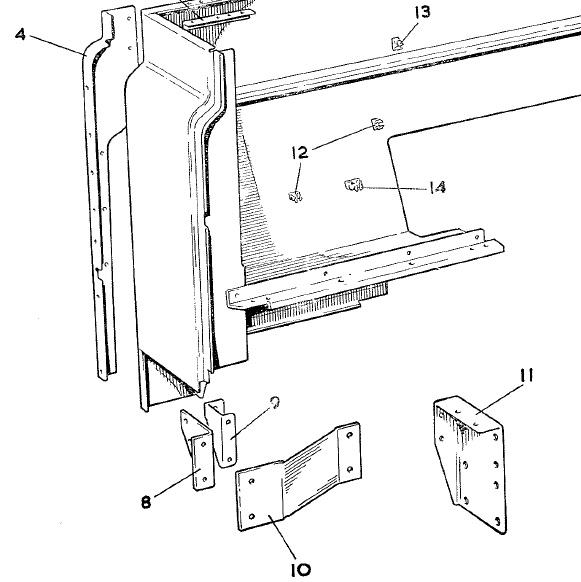

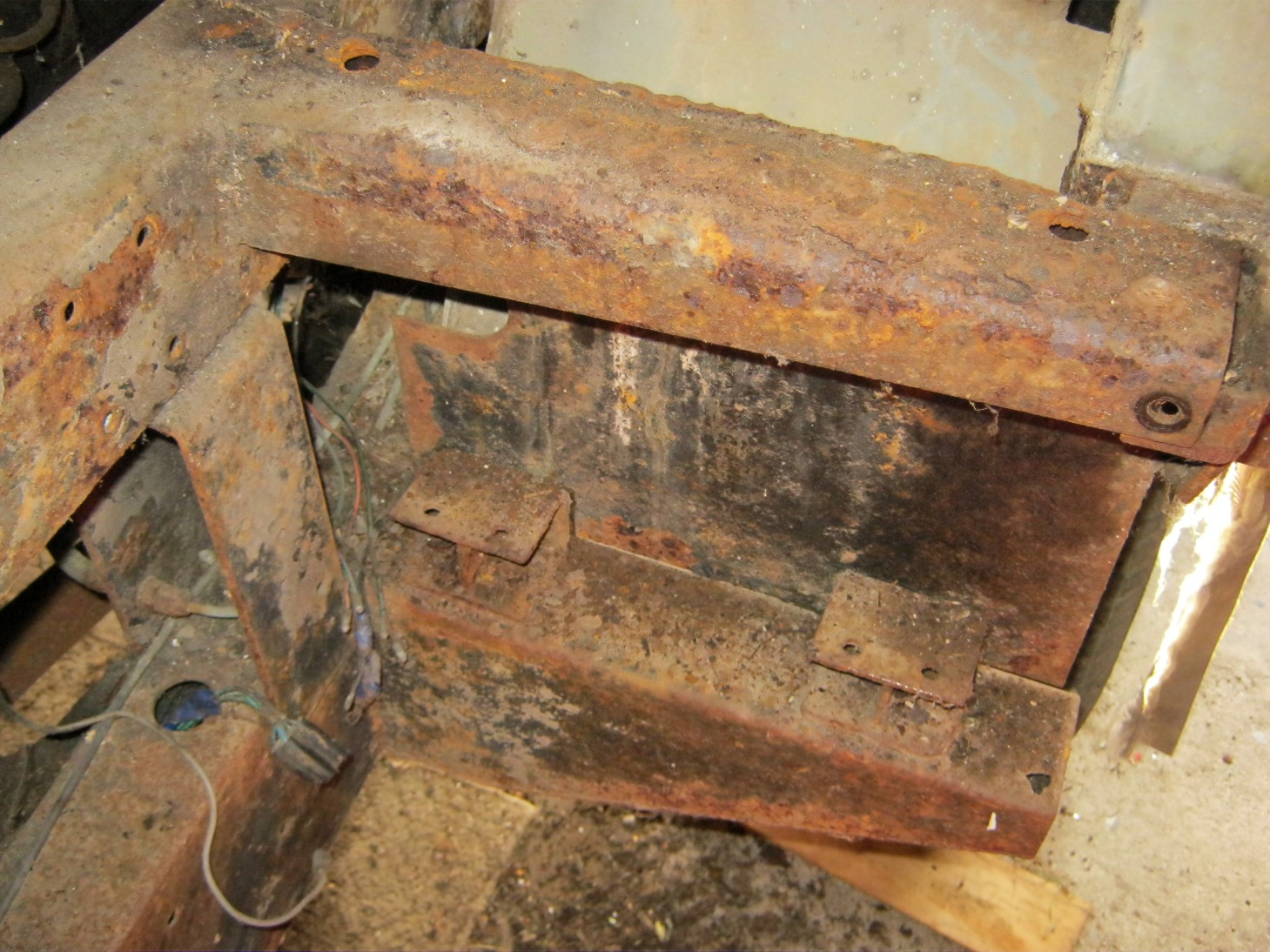

#10 is the black Z shaped bracket seen in the centre of the attached pic, the parts book illustration is a bit unclear of its 3D shape.

[DasLandRoverMan]

Ah yes, I see it now. Another part that's pretty good at dissolving on them.

[Eric]

Thanks for the help everyone. Looks like it's all right so far. What I need now is a clearer view of the vertical plate that is between the two outriggers. Is it the full width of the lower one or does it stop at the edge of the inner splash plate?
Also a couple of photos of the vehicle as it stands.

[fuckwit]

====Want====

[DasLandRoverMan]

Full width of the lower outrigger.

[NZ2AFC]

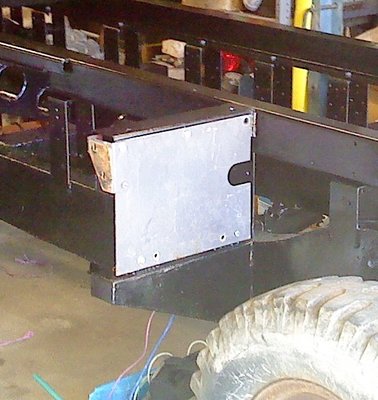

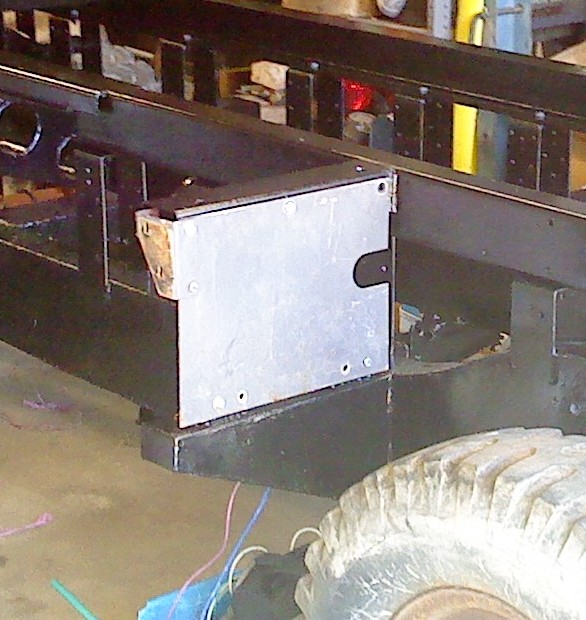

A few pics of the support plate. Its size is 276mm x 364mm x 3mm.
